Panic Exit Device

Home / Door Hardware / Panic Exit Device / Commercial Exit Door Hardware Stainless Steel Heavy Duty Fire Exit Door Panic Cross Bar

F505

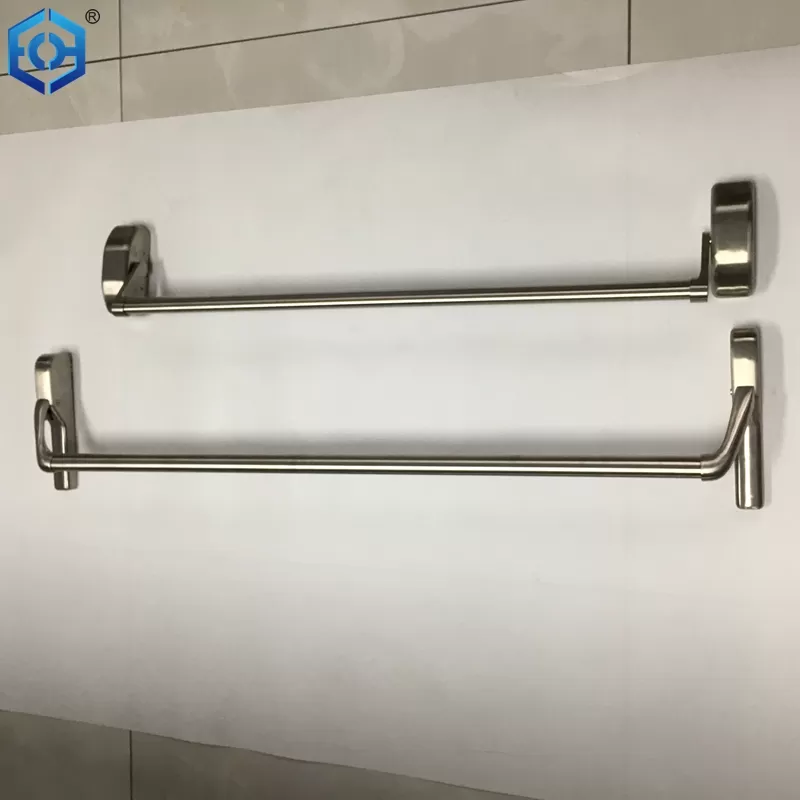

Commercial Exit Door Hardware Stainless Steel Heavy Duty Fire Exit Door Panic Cross Bar

Stainless Steel panic Exit Device is a popular Panic Exit Device, it is durable and easy to use. As a professional Panic Exit Device supplier in China, we provide customers various quality Emergency Exit Device and they apply to different commercial of doors.

Type:rim narrow Type security latch bolt
Brand:EC hardware
Touch Bar Length:860mm
Body  Length:960mm
Usage:wooden door, metal door, steel door, interior door, outerdoor
Certification:

EN1125,196 min fired rated,

CE certification,UL10C 3 hours Fired Rated,

ANSI/BHMA A156.3-GRADE 1ULNO:R41361

Material:Steel/Stainless steel
Finish:Silver  powder  painting,Color  Optional



Description

The Exit Device for Wooden Door is one kind of our UL Listed Exit Device.UL No:R41361. The material of Wooden door Emergency Exit Device is Stainless Steel, so it can keep the original shape very well It won't turn yellow or rust.


UL Listed Push Bar Door Locks Panic Exit Device with Exterior Lever Emergency Lock can also keep smooth surface for a long time, not easy to rust and can wear resistant, these two characteristics greatly reduce the possibility of wooden door Exit Device be come old and bad. The Fire Rated Panic Hardware is smooth and easy to install and use, it can bring you high security and beauty.For further information, please contact us!


UL Listed Push Bar used for wooden door, metal door, steel door, interior door, outer door. 3 hours fired rated panic exit device suitable for fired rated door. Fire-rated doors are a part of the Passive Fire Protection (PFP) systems that compartmentalize a structure to restrict the growth and escalation of fire in other areas of a building or establishment. These specialized doors are built to withstand fire to manage risk and minimize property damage. They also help contain deadly smoke in one place.


1.Certificate:EN1125,cycle test 200,000 times

2.GB30051-2013Grade 1 fire-rated

3.Latch is stainless steel 304

4.Cover is stainless steel 304 or steel

5.Salt spray test,240 hours

6.Modularized design,single lock point is easy to change into 3 and 4 lock points

7.Three or four point locks for subway,bus station,airport and container etc

8.Certificate:F511A,EN12211-2016,6000Pa

9.Certificate:F511A,BHMA/A156.3,grade 1


Product nameUL Listed Panic Push Bar
Product ModelF505
CertificationGXHX.R41361 - Fire-exit Hardware _ UL Product iQ
Materialsteel/stainless steel
Door Width≤1320mm
Door Height≤2100mm
Max.DoorWeight200kg
Max.Door Thickness50-55mm/>55mm
Non-handed DesignSuitable with out alteration for left or right hand applications
FinishSatin stainless steel, Polished stainless steel, Antique Brass, Silver, Physical Vapor Deposition
Suitable forWooden door, Metal door, Fire rated door, Escape door, Exit Door, etc.


Commercial Exit Door Hardware Stainless Steel Heavy Duty Fire Exit Door Panic Cross Bar


MOQ50 sets
PackageOne set white box or color box or blister card in standard export carton 6 sets/ Carton
Sample time5-7working days
Production lead timeAbout 45 days
Shipping PortJiangmen,  Guangdong,  China

Accessories





  • EC500P Zinc Striker

    EC500P Zinc Striker

  • EC500S Sus 304 Striker

    EC500S Sus 304 Striker

  • EC500 Screws

    EC500 Screws

  • EC500 Metal End Cap

    EC500 Metal End Cap

  • EC500 Sus304 End Cap

    EC500 Sus304 End Cap
